Item: 221726

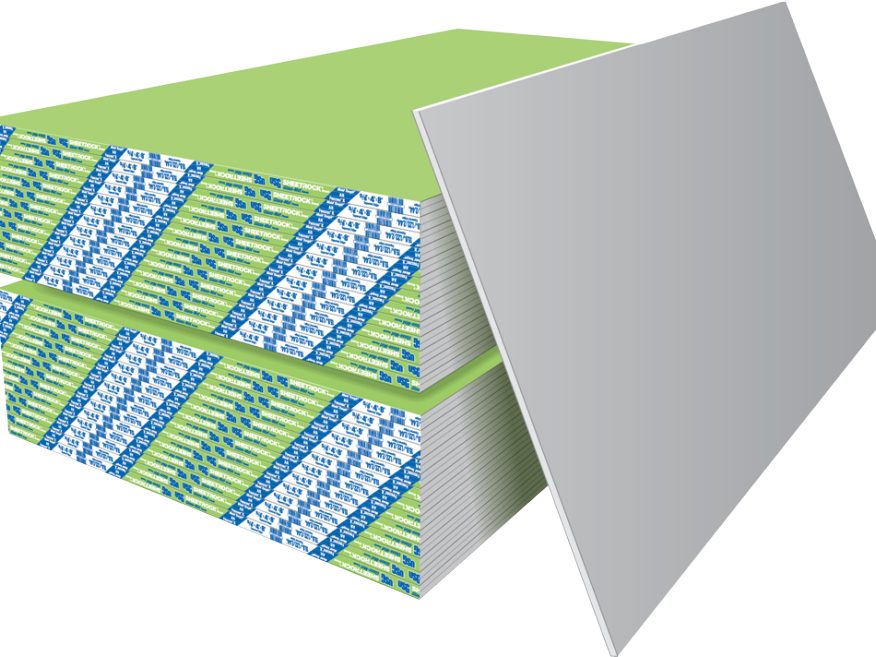

Sheetrock® Brand Glass-Mat Panels Mold Tough® VHI Firecode® X
Key Documents & Design Files
Overview
Overview
High performance interior panels, offering greater surface indentation and impact damage than standard gypsum panels USG Sheetrock® Brand Glass-Mat Panels Mold Tough® VHI Firecode® X offer very high impact resistance and added resistance to surface indentation and impact damage, and is an upgrade to abuse-resistant panels. These moisture- and mold-resistant panels are recommended for commercial and institutional construction where weather exposure is anticipated, and provide a lower-cost alternative to other impact-resistant systems for partitions from other construction methods.
Main Features
- 5/8 in. (15.9 mm) glass-mat Type X panels with abuse, moisture and mold resistance
- Feature a noncombustible, moisture-resistant gypsum core encased in a fiberglass face and back that shed water
- Designed and tested to offer greater resistance to surface abrasion, indentation and impact damage than 5/8 in. (15.9 mm) Sheetrock® Brand Glass-Mat Panels Mold Tough® Firecode® X
- Suitable for use in pre dry-in (fast track or pre-rock) and similar applications of panels before the building envelope is fully enclosed
- Quick score-and-snap, no sawing or special tools required
- Comply with ASTM C1658, Standard Specification for Glass Mat Gypsum Panels, for 5/8 in. (15.9 mm), Type X and glass mat water-resistant gypsum panel
- Tested to ASTM C1629, Standard Classification for Abuse-Resistant Nondecorated Interior Gypsum Panel Products and Fiber-Reinforced Cement Panels, for surface abrasion and indentation resistance, and soft- and hard-body impact
- Score a "10" when tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber
- Can be exposed to weather for up to 12 months and are guaranteed three years against manufacturing defects
- Underwriters Laboratories Inc. (UL) Classification as to fire resistance, surface burning characteristics and noncombustibility
- Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)
Specifications
Submittal Sheet
PDF 355.1 KB
Performance
- Mold & Mildew Resistance Yes
-
Fire Resistance
- Fire Rating Firecode®
- ASTM Type ASTM C1396; ASTM C1629; ASTM D3273
Sustainability
- GREENGUARD Certification Yes
Physical Data
- Thickness (in.) 5/8
- Edge Tapered Edge
- Panel Size 48 in. x 8-12 ft.
Warranty
Installation
Installation Guide PDF 478.7 KB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 355.1 KB |
| Architecturall Specification (English) | DOCX 131.1 KB |
White Papers
| White Paper (English) | PDF 100.3 KB |
| Sell Sheet (English) | PDF 2.5 MB |
Catalogs & Brochures
| System Catalog (English) | PDF 14.2 MB |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Installation Guide (English) | PDF 478.7 KB |
SDS, Certifications & Reports
| SDS (English) | PDF 149.7 KB |
Warranties
| Warranties (English) | PDF 139.4 KB |
Sustainability
| HPD (English) |
